Your present position：Home>Sieve Equipments

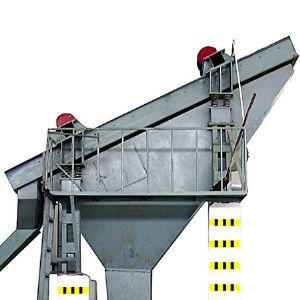

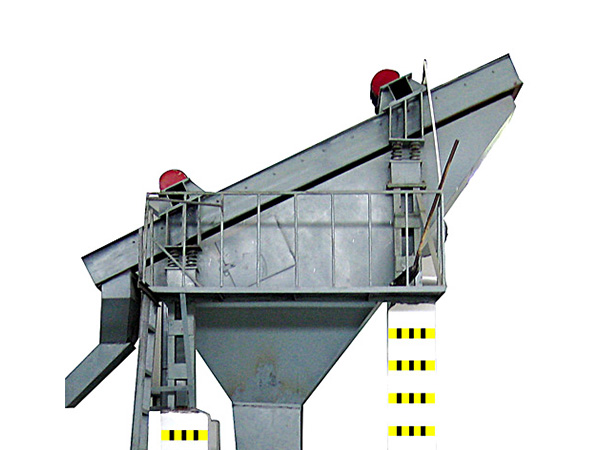

HZS20-HZS100 Vibrating Grading Sieve

■ USE◎ It is used for sieving of compound fertilizer and biology organic fertilizer.■ Pr

信息詳情


■ USE

◎ It is used for sieving of compound fertilizer and biology organic fertilizer.

■ Profile of Equipment

◎ This equipment is a special sieving equipment used in compound fertilizer industyr, The sieve body has two kinds: single layer and double layer, The sieve meshwork is maed out of quality Mn Steel or stainless steel, with the characteristics of single structure,convenient operation, good rigidity and adjustable hole diameter.

■ Main Technical parameters:

Type	HZS35	HZS50	HZS70	HZS100
Nominal area (m2)	3.5	5	7	10
Capacity (t/h)	6-8	10-14	16-20	20-25
Power of motor (kw)	0.75×2	1.1×2	1.5×2	2.2×2
Vibration frequency	960（time/ming）
Vibration amplitude (mm)	4-6
Dimension (L.×W.×H.) (mm)	3900 ×1500 ×2730	4170 ×1960 ×3730	4440 ×2290 ×4060	5400 ×2600 ×4560
